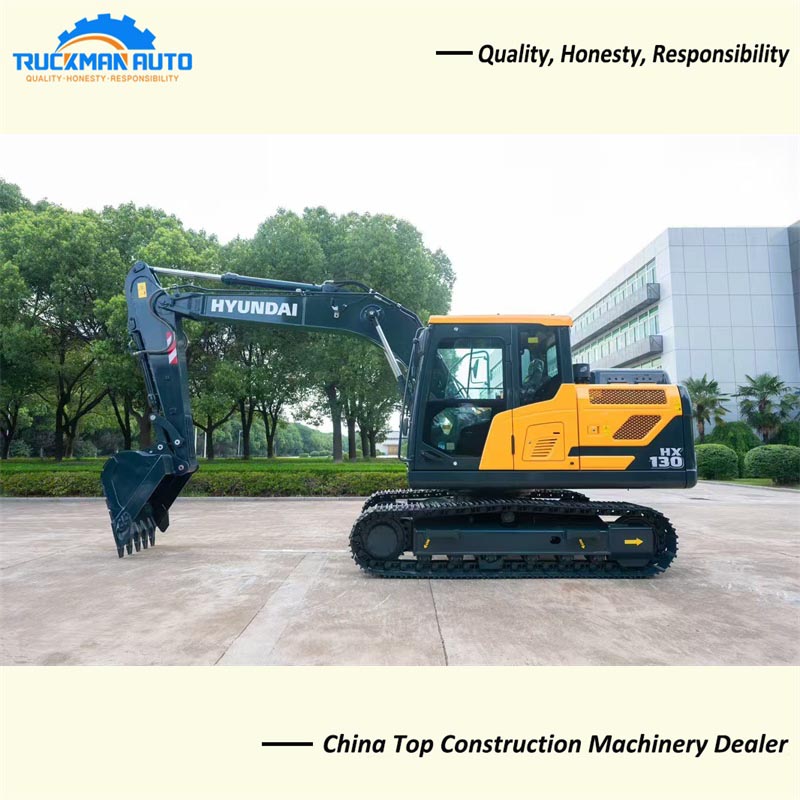

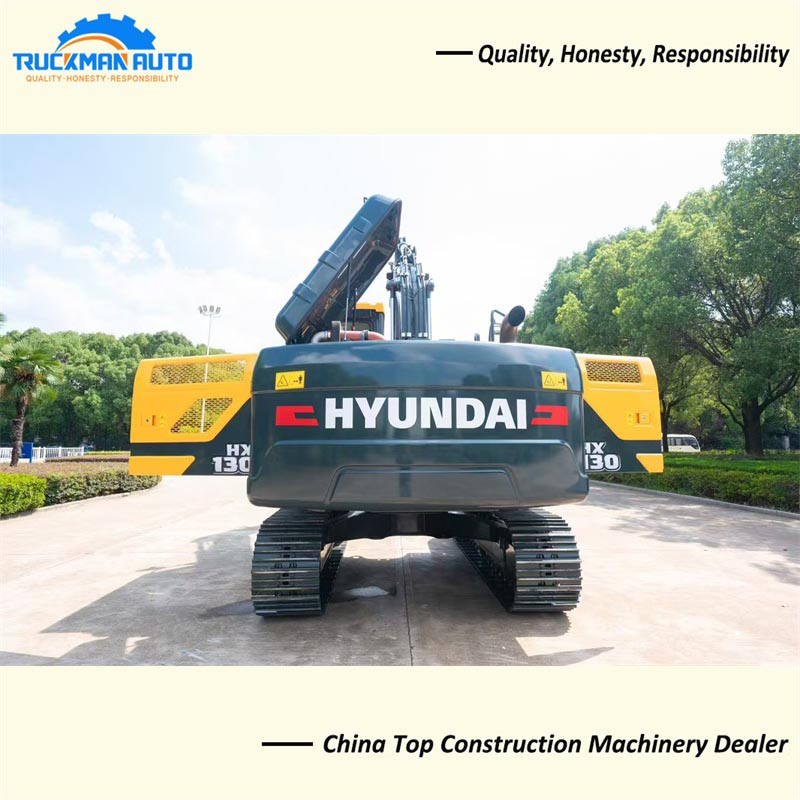

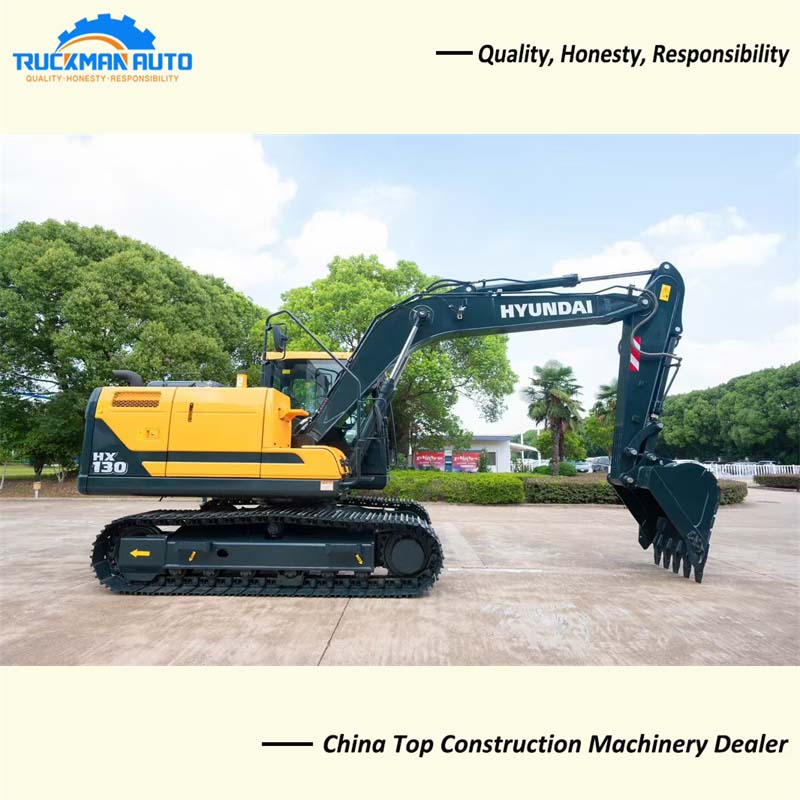

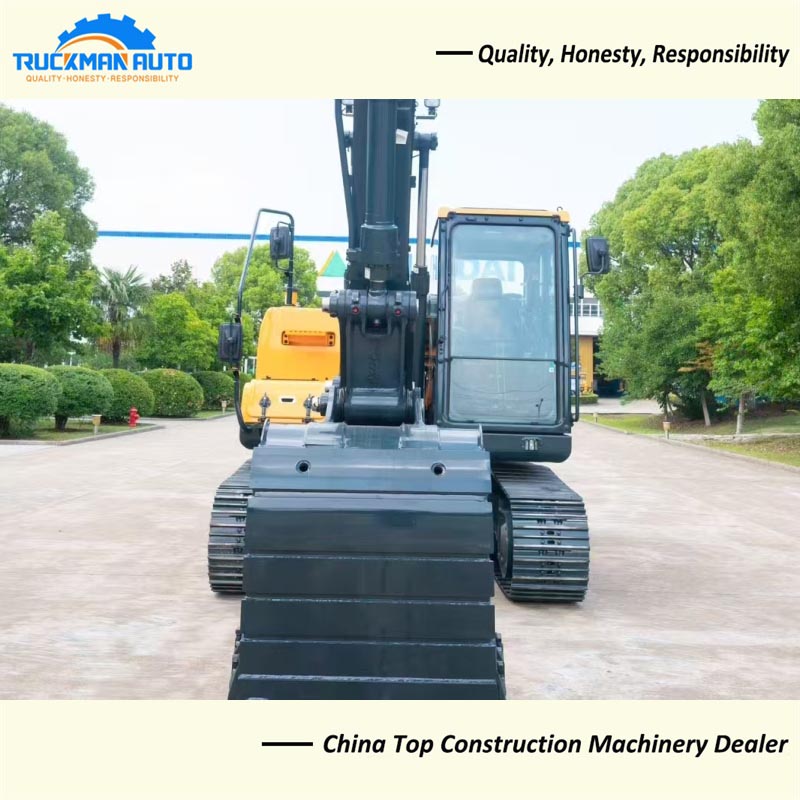

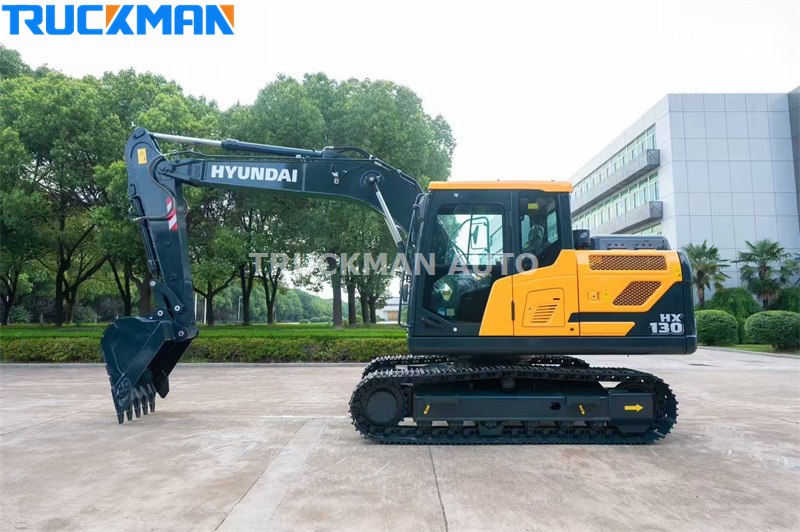

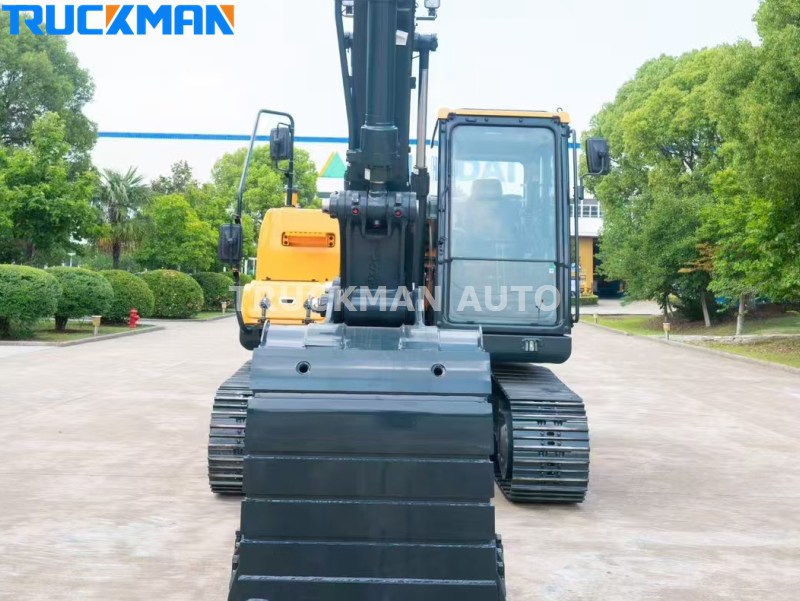

HYUNDAI HX130 13 Tons Crawler Excavator

About HYUNDAI HX130 13 Tons Crawler Excavator

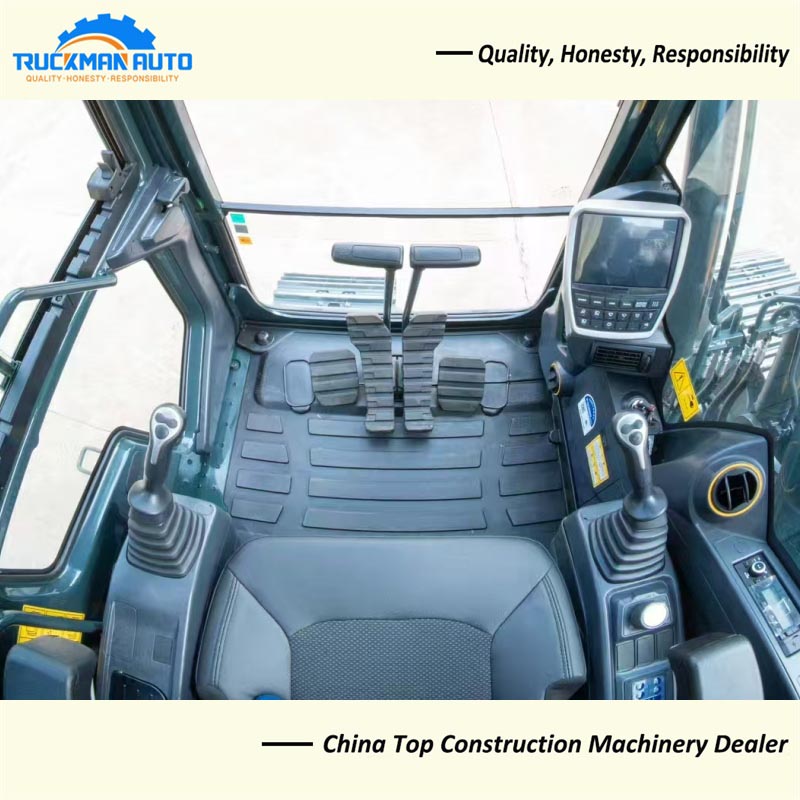

The excavator adopts imported brand electronically controlled main pump with quality assurance, and the electronically controlled main pump is equipped with EPIC system to realize energy saving and low consumption, and fast operation speed. Equipped with fuel consumption monitoring system, you can check the fuel consumption information at any time through cell phone terminal and instrument panel. The new 21-ton medium-large HX series cab provides users with a broader view of the work and optimizes operator comfort. When the operator is in the cab, he has enough visibility and foresight of the surrounding environment and construction work. The cab has better sealing and lower noise.

HYUNDAI HX130 13 Tons Crawler Excavator Specification

Product Name: HYUNDAI HX130 13 Tons Crawler Excavator

Application: Constructions works

Moving Type: Crawler Excavator

Machine Weight: 13000kg

Bucket Capacity: 0.52m³

Boom Length: 4600mm

Dipper Length: 2260mm

Engine Model: CUMMINS F4.5, Euro 4

Rated Power: 89/2200kw/rpm

Fuel Tank: 270L

Dimensions:7820x2540x2950mm

HYUNDAI HX130 13 Tons Crawler Excavator specification only for your reference, we can manufacture other Crawler Excavator basic your request.

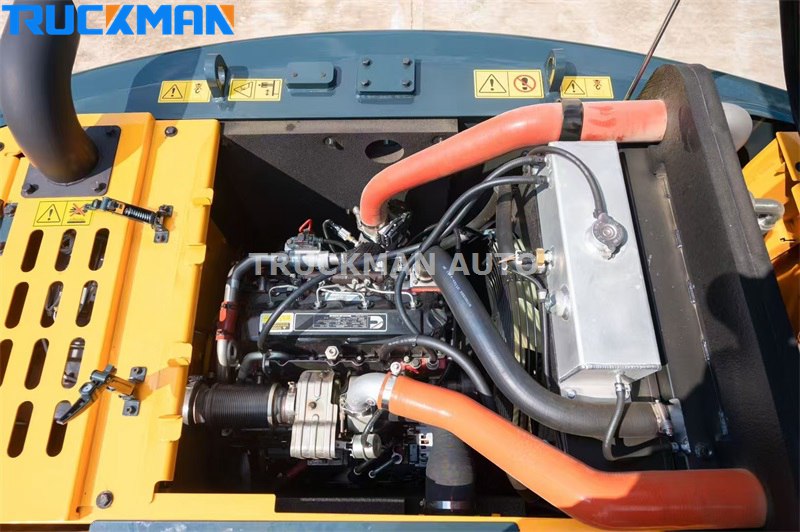

HYUNDAI HX130 13 Tons Crawler Excavator Engine

The excavator is powered by CUMMINS engine, CUMMINS F4.5 is a national 4-cylinder engine, equipped with DPF after-treatment system, compact in shape, no need of urea, low maintenance cost. In the range of 1300rpm~1500rpm, F4.5 engine has higher torque and best fuel economy. Hyundai Construction Machinery has the technical experience of meeting the environmental emission standards of Tier4 and Euro5 in many regions of the world, and has the mature technology of applying to the problem of F4 after-treatment system.

HYUNDAI HX130 13 Tons Crawler Excavator Enhanced Durability

The excavator has a 4.6m arm and 0.52 bucket capacity, which improves the durability and longevity of the superstructure and work unit. Improvement of bushing flexibility, durability and abrasion resistance, optimization of bucket material and design has improved durability and abrasion resistance. Slewing and travel motors with 10,000 hours of field testing for proven durability and performance. Longer and more stable tracks for a wide range of implements (loggers, breakers, etc.). Large capacity Donaldson air filter for better filtration and longer maintenance intervals.
