HYUNDAI HX505L 50 Tons Crawler Excavator

About HYUNDAI HX505L 50 Tons Crawler Excavator

HYUNDAI HX505L crawler excavator is not only highly efficient, but also very beautiful. It can be used in mining areas and earthworks. HYUNDAI HX505L crawler excavator is also very fuel efficient, safe and convenient.HYUNDAI HX505L crawler excavator uses an automatic safety lock device. When the safety valve stem is lifted, it limits the action of the working device when it senses unintentional contact with the hydraulic pilot handle, making the whole machine safer to operate.

HYUNDAI HX505L 50 Tons Crawler Excavator Specification

Model: HX505L

Operating Weight: 51,900kg

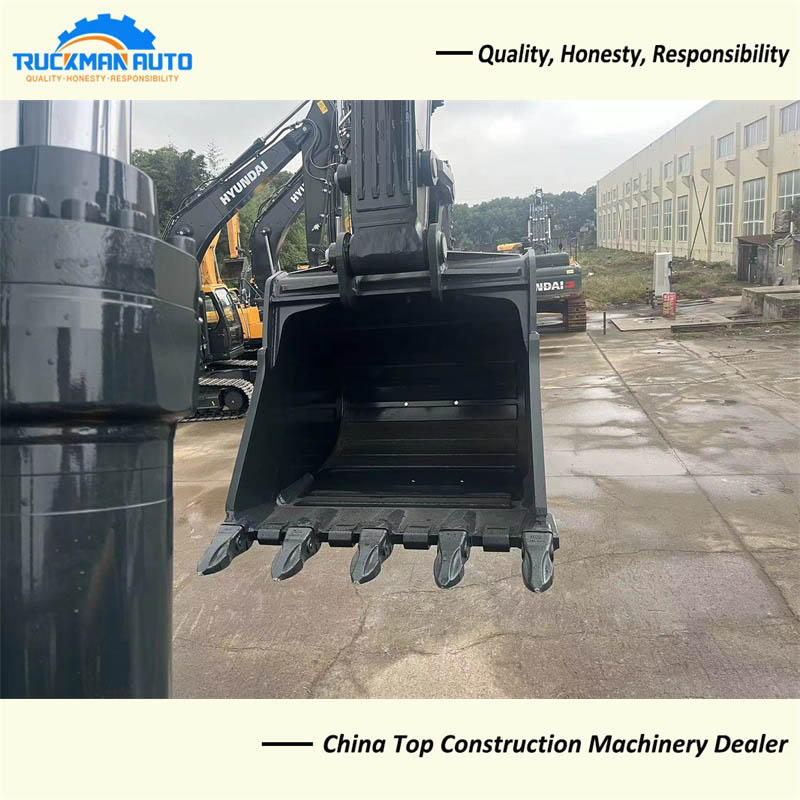

Bucket Capacity: 2.79m3

Rated Power: 280kW/2100rpm

Maximum Digging Height : 10,560mm

Swing Speed: 5.2/3.3 km/h

Maximum Digging Depth Force: 6800mm

HYUNDAI HX505L 50 tons crawler excavator specification only for your reference, we can manufacture other model excavator basic your request.

HYUNDAI HX505L 50 Tons Crawler Excavator Feature

HYUNDAI HX505L crawler excavator is equipped with CUMMINS X12 engine, the displacement is increased by 10%, the power is stronger, the maintenance is more convenient, and the service life is longer. HYUNDAI HX505L crawler excavator adopts DOC+DPF+SCR post-treatment technology to meet the Euro II emission standards. HYUNDAI HX505L crawler excavator adopts German imported Rexroth hydraulic pump, which has high working efficiency.

HYUNDAI HX505L 50 Tons Crawler Excavator Advantage

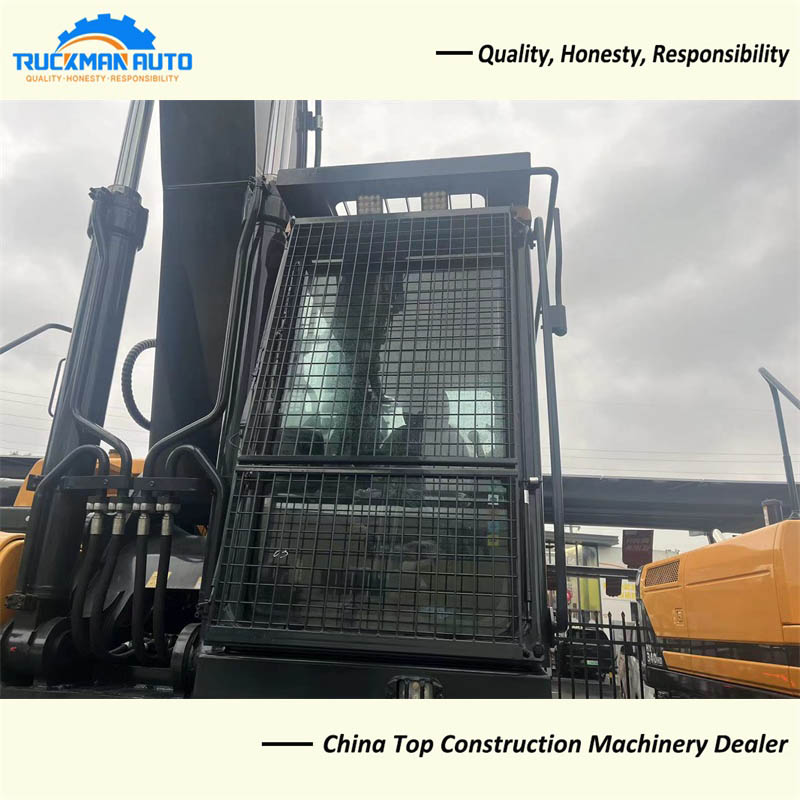

The 50 tons crawler excavator is equipped with a mining chassis, which makes the operation more stable, and the arm opening is larger, which can easily cope with heavy-load operations, and the working capacity of the whole machine is stronger. The 50 tons crawler excavator also uses a hydraulically driven independent cooling fan, and the temperature can be precisely controlled. The 50 tons crawler excavator also has a full protective net installed in the cab, which is safer.
