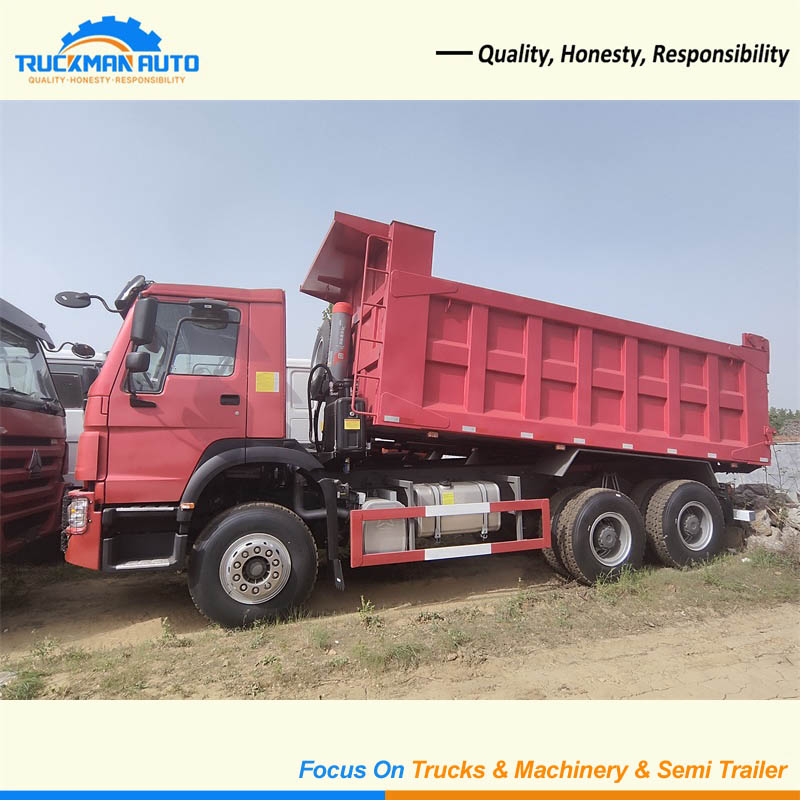

25 Tons SINO TRUCK HOWO 340HP 6x4 Tipper Truck For Zambia

About 25 Tons SINO TRUCK HOWO 340HP 6x4 Tipper Truck

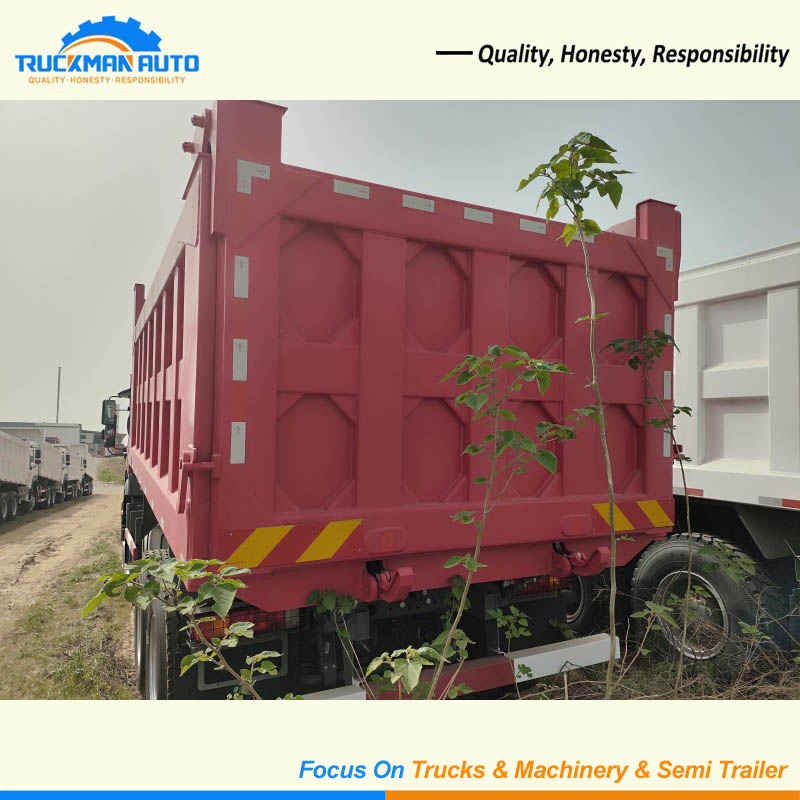

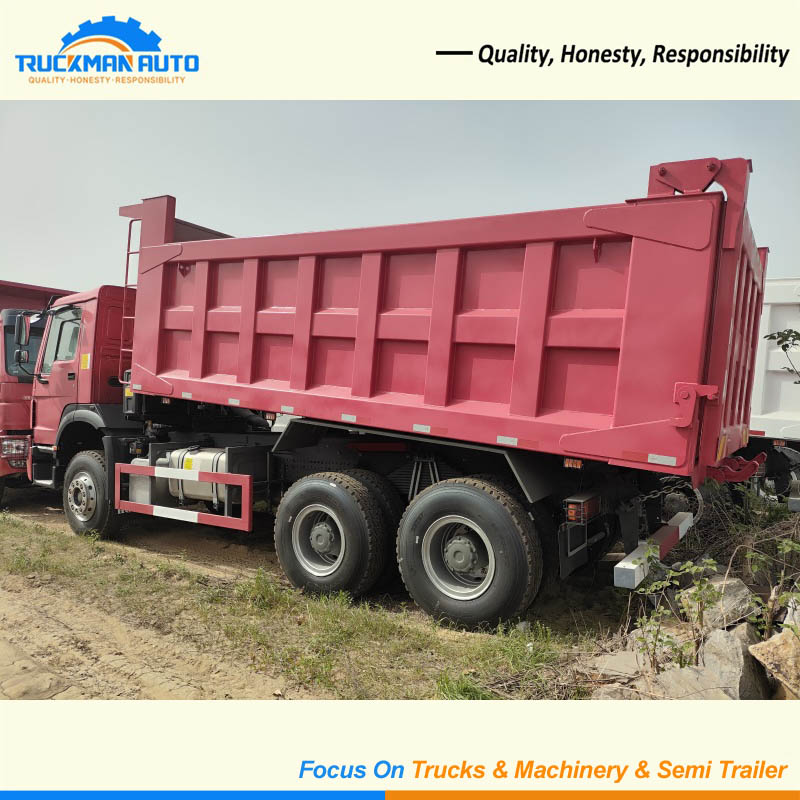

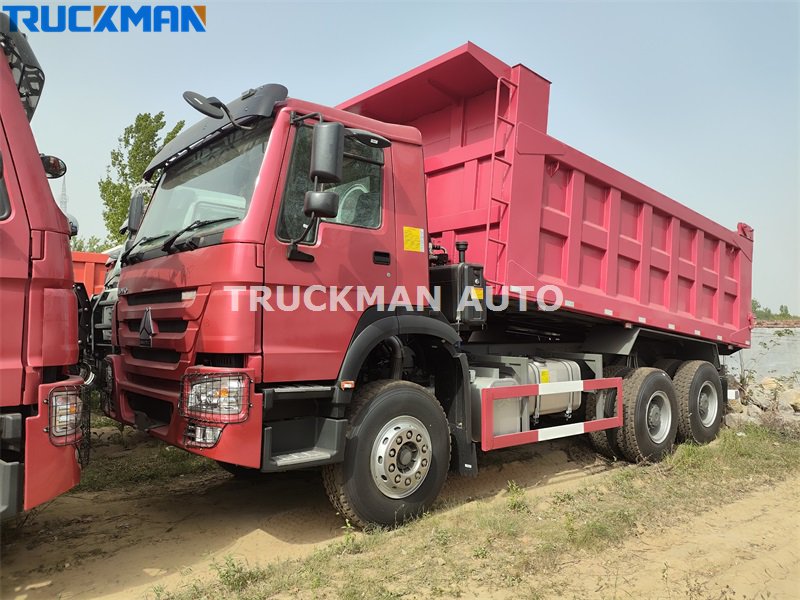

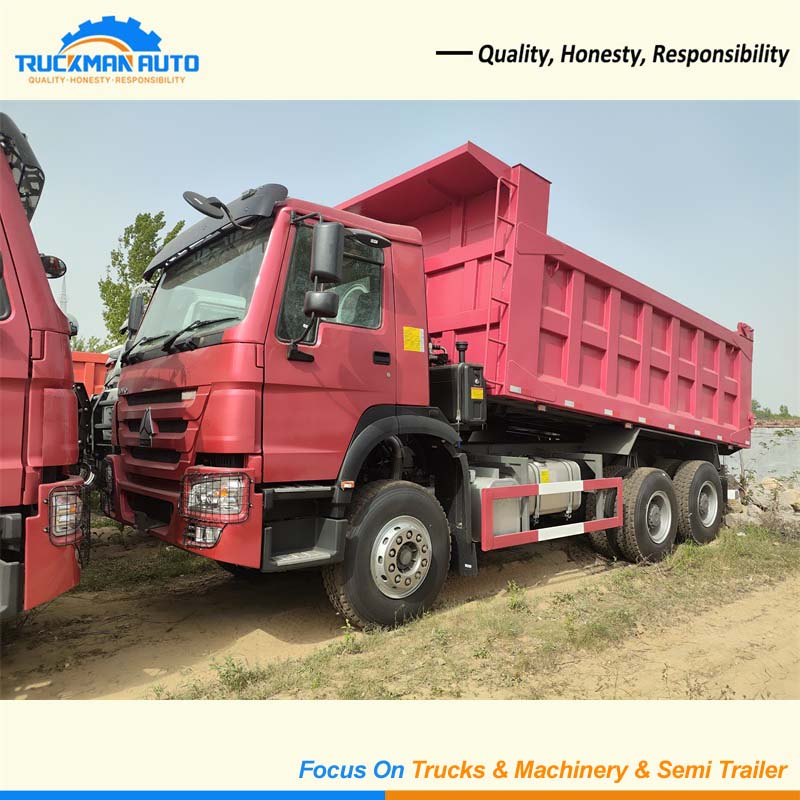

HOWO 340HP tipper truck uses WEICHAI 340 horsepower engine and 10-speed manual transmission. The vehicle is not only powerful, but also has smooth gear shifting. The 300L fuel tank can meet the daily transportation needs of users, and the 12.00R20 tire is more suitable for heavy-duty transportation. The cargo box of HOWO 340HP tipper truck adopts a rectangular bucket. Compared with the U-shaped bucket cargo box, the rectangular bucket cargo box has a larger internal volume. The U-shaped bucket cargo box has no dead corners, so there is no residue when unloading the goods, which is more convenient.

25 Tons SINO TRUCK HOWO 340HP 6x4 Tipper Truck Specification

Engine: WP10.340E22, 340HP. Euro 2

Cabin: HW76,With one bed, A/C

Gearbox: HW19710, 10F & 2R, with PTO, manual gearbox

Drive Axle: MCP16ZG,2x16000kg,

Tire: 12.00R20,10+1 pcs

Cargo Size: 18m3

Fuel Tank: 300L

Dimension:  8500x2580x3450mm

25 Tons SINO TRUCK HOWO 340HP 6x4 tipper truck specification only for your reference, we can manufacture other model tipping truck basic your request.

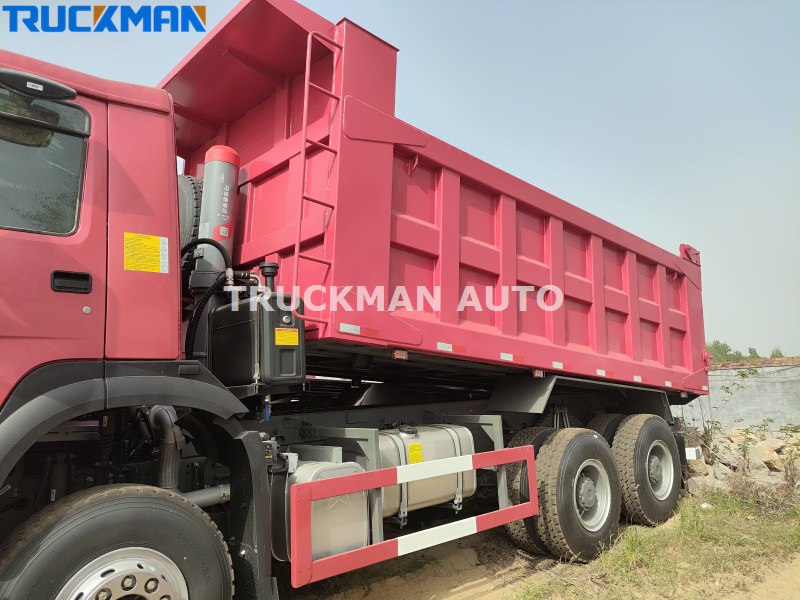

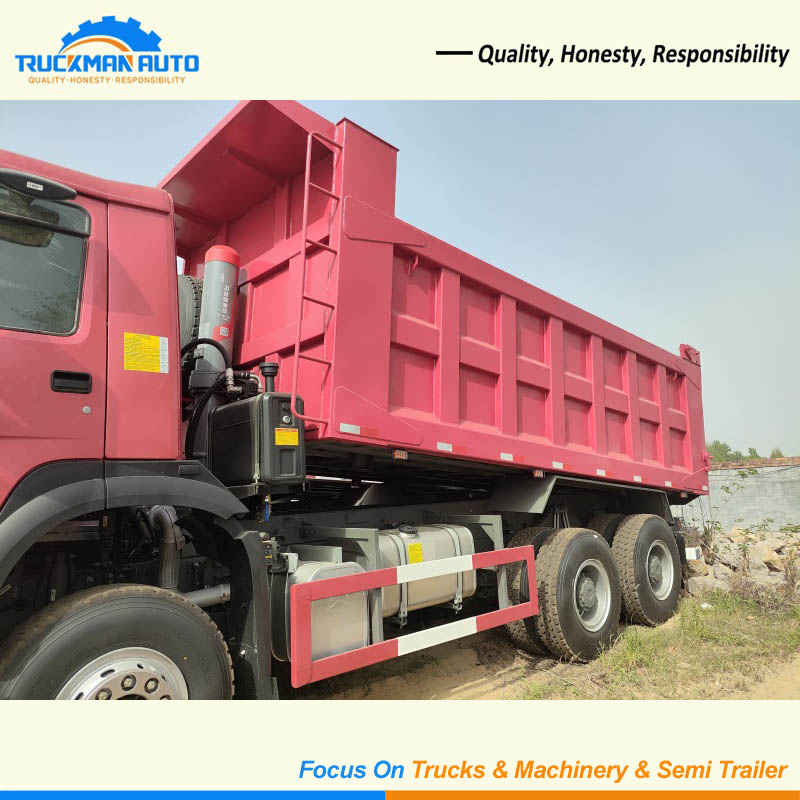

25 Tons SINO TRUCK HOWO 340HP 6x4 Tipper Truck Lifting Cylinder

HOWO 340HP tipper truck uses a front-lifting cylinder. The hydraulic oil tank of the front hydraulic jack is placed in the front of the car behind the cab. This layout saves space and ensures the normal operation of the hydraulic system. The front hydraulic cylinder has a small lifting force, which means that its impact on the vehicle structure is relatively small. At the same time, the lateral rigidity of the car body is large during lifting, which helps to maintain the stability of the car body.

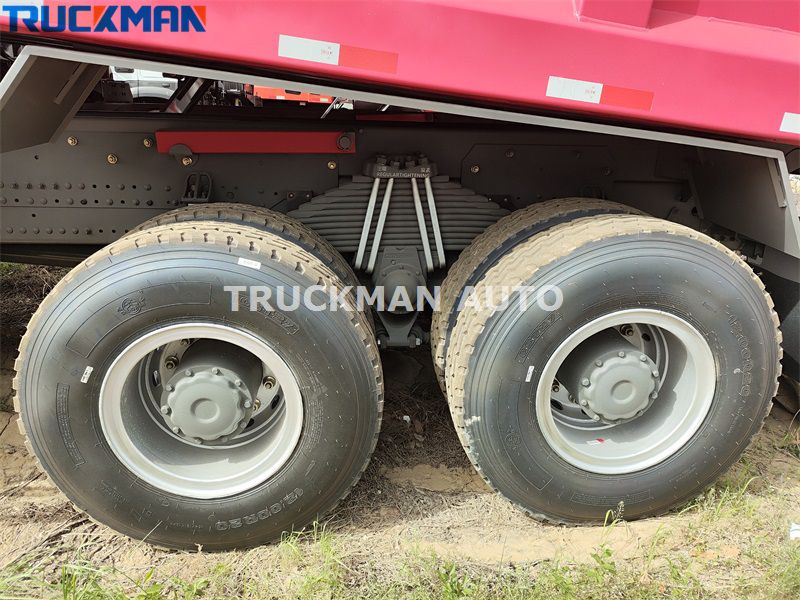

Benefits Of Leaf Spring Double U-Bolts

The leaf spring of HOWO 340HP 6x4 tipper truck uses double U-shaped bolts, which can fix the leaf spring more firmly to prevent it from loosening or shifting during vehicle operation, thereby improving the safety and stability of the vehicle. The design of double U-shaped bolts increases the contact area between the bolts and the leaf spring, thereby improving the overall load-bearing capacity, which is suitable for carrying heavier vehicles or high-load usage.
