XCMG GR180 180HP Motor Grader

About XCMG GR180 180HP Motor Grader

The XCMG GR180 motor grader provides sufficient strength and stability for roadbed construction. Equipped with Cummins engine, it has excellent reliability, durability, power and economy. It is suitable for constructing road base and road surface, building slopes, excavating side ditches, as well as mixing road mixture and carrying out maintenance work on dirt and gravel roads.

XCMG GR180 180HP Motor Grader Specification

Product Name: XCMG GR180 180HP Motor Grader

Application: Construction works

Machine Weight: 15400 kg

Engine Brand: Cummins

Engine model: 6CTA8.3-C190-2

Rated power/speed: 142kW/2200rpm

Working hydraulic pressure: 16Mpa

Dimension: 8900x2625x3420mm

XCMG GR180 180HP Motor Grader specification only for your reference, we can manufacture other Motor Grader basic your request.

XCMG GR180 180HP Motor Grader Engine

The XCMG 180HP motor grader uses Cummins engine, which has excellent reliability, durability and environmental adaptability through advanced technical means such as turbocharging, intake preheating and combustion optimization, good fuel economy, low noise, easy to operate, compact structure for easy maintenance, meets the emission standards, and has good economic benefits.

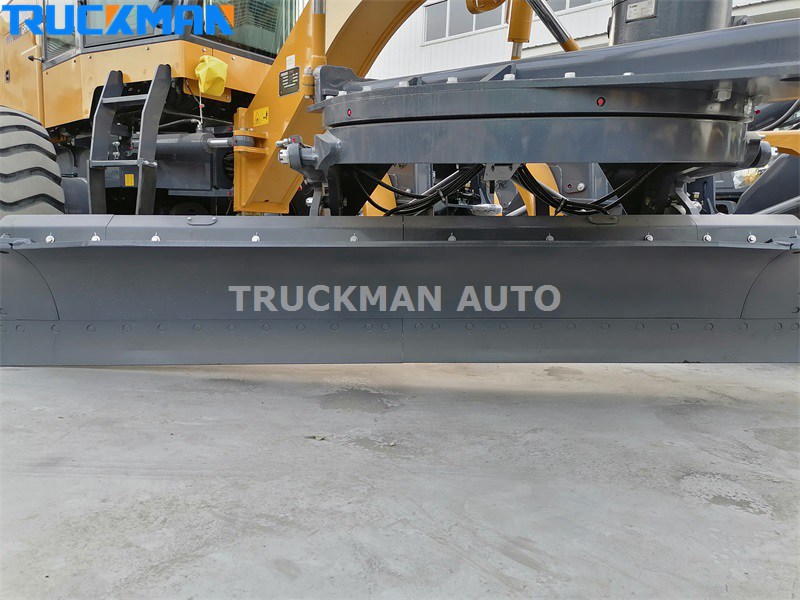

XCMG GR180 180HP Motor Grader Scraper

The scraper of the XCMG 180HP motor grader is mounted between the front and rear wheel axles of the machine and is capable of lifting, tilting, slewing and outreach. The scraper can complete 6-degree movement in space, they can be carried out individually or in combination with flexible and accurate movements, easy to maneuver, and the leveling of the site has a high degree of precision.
