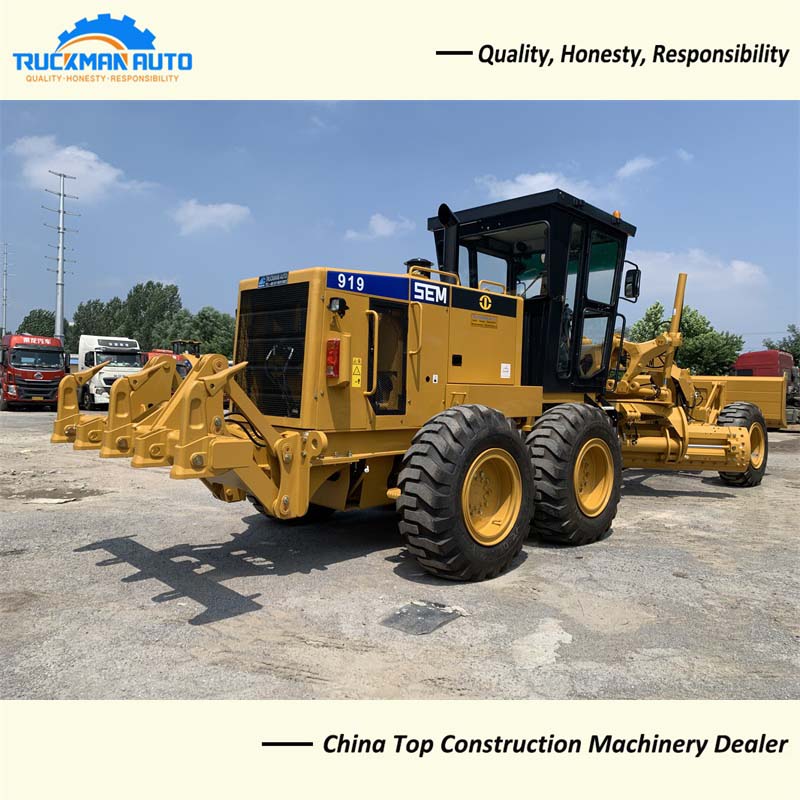

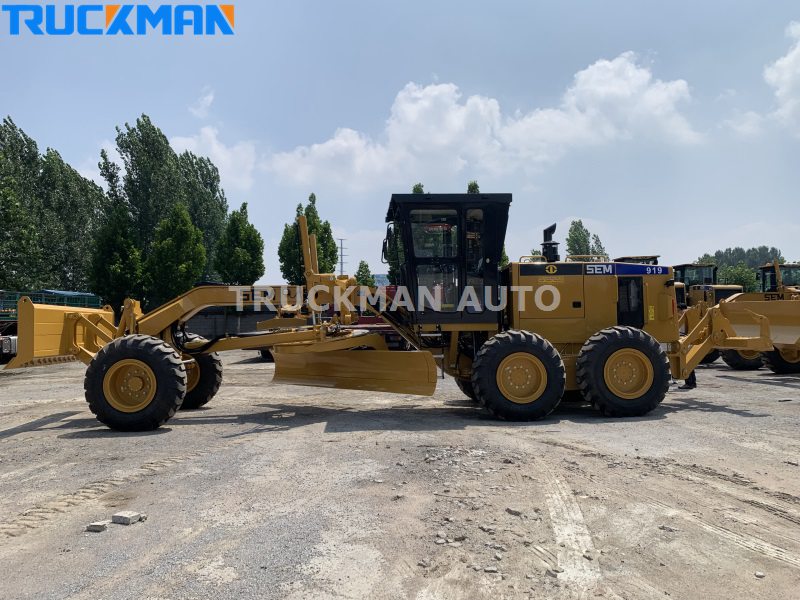

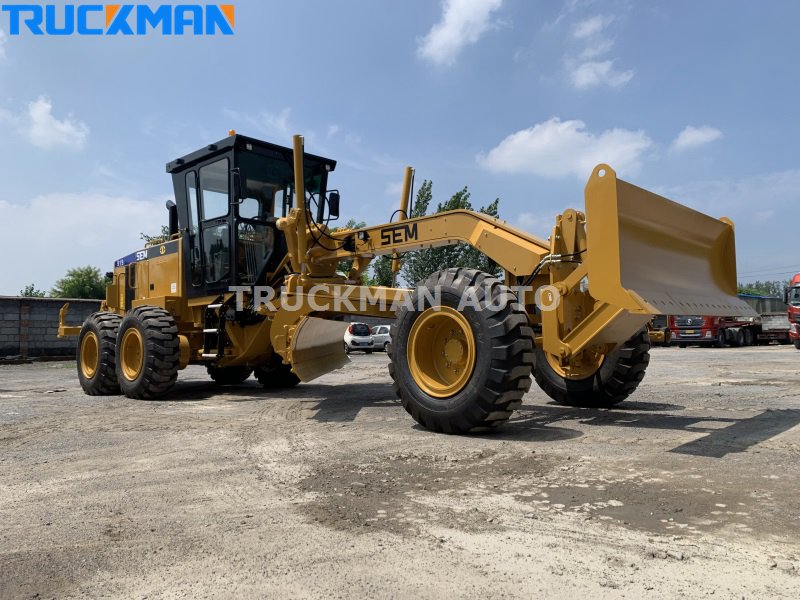

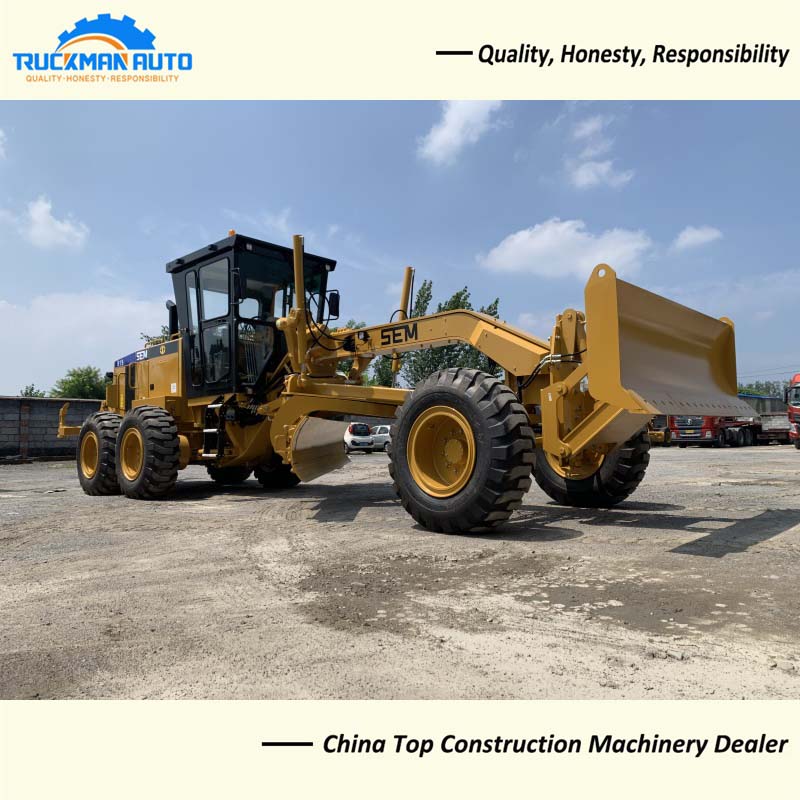

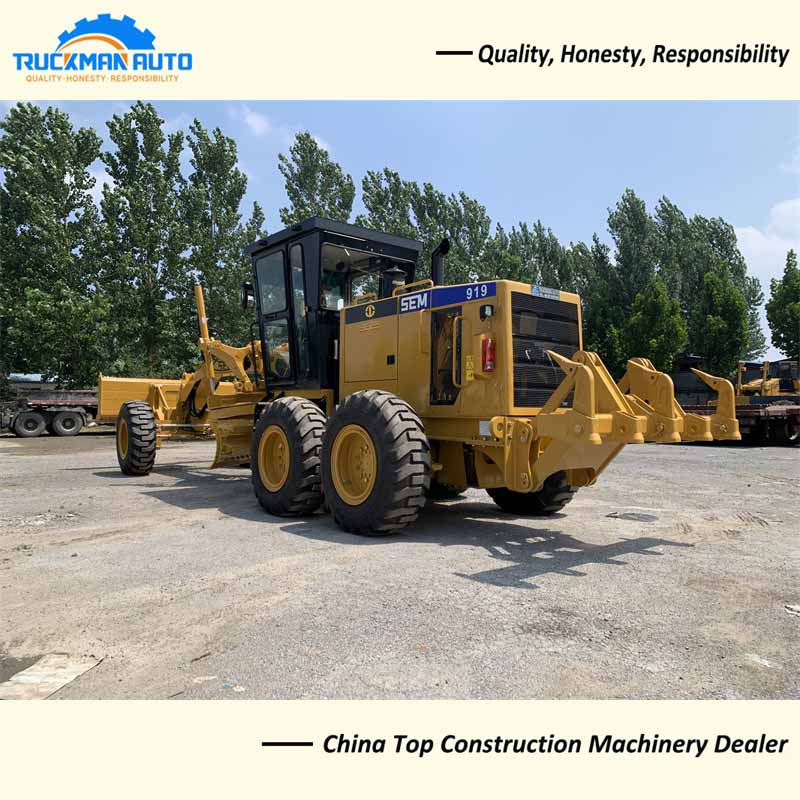

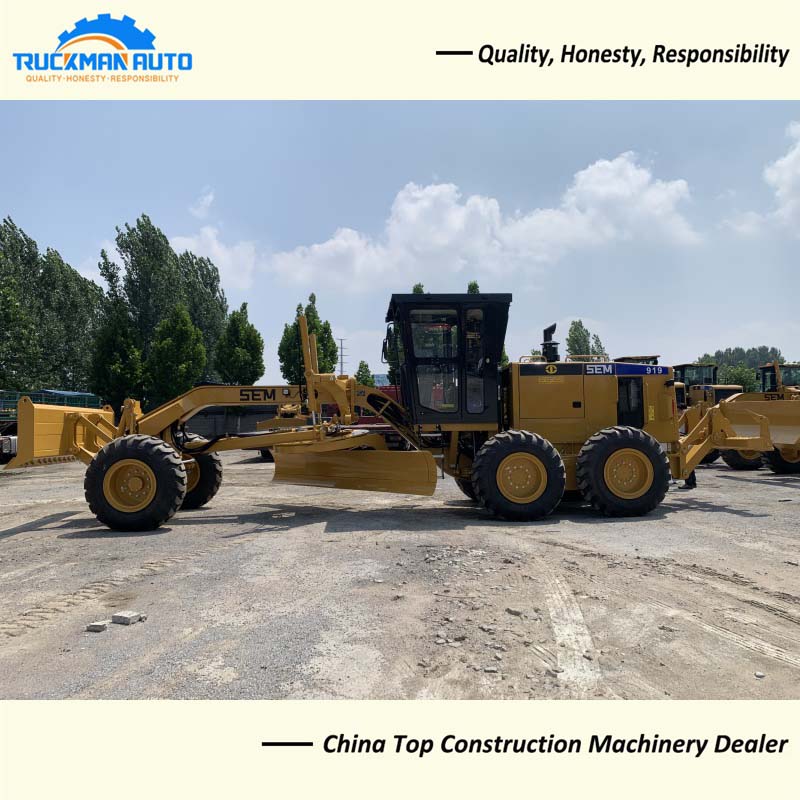

SEM 919 190HP Motor Grader

About SEM 919 190HP Motor Grader

SEM 919 motor grader with SHANGCHAI engine, rated at 140KW, is powerful. The whole SEM motor grader optimizes the axle load ratio, better traction performance. Large-diameter plastic fan with large air volume and good cooling effect can better ensure the continuous and stable work of the machine.

SEM 919 190HP Motor Grader Specification

Product Name: SEM 919 190HP Motor Grader

Application: Construction works

Machine Weight: 16880 KG

Engine: SC8D190.1G2

Rate Power: 140KW

Maximum design speed(km/h): 40

Wheelbase: 6140mm

Dimension: 11100x2748x3360mm

SEM 919 190HP Motor Grader specification only for your reference, we can manufacture other Motor Grader basic your request.

SEM 919 190HP Motor Grader Frame

The SEM 190HP motor grader front frame adopts flanged box structure, the upper and lower plates are continuous and uninterrupted from the foremost to the main articulation, which guarantees high strength and consistency, and can easily cope with heavy-duty continuous operation. The service life of structural parts is longer. The traction frame is made of two square steels forming an A-shape structure with good durability and strength, long service life and low failure rate.

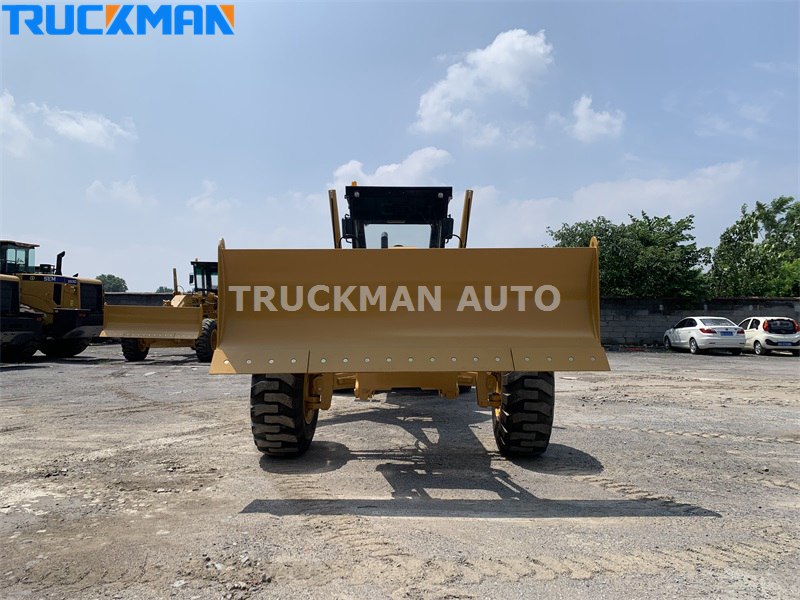

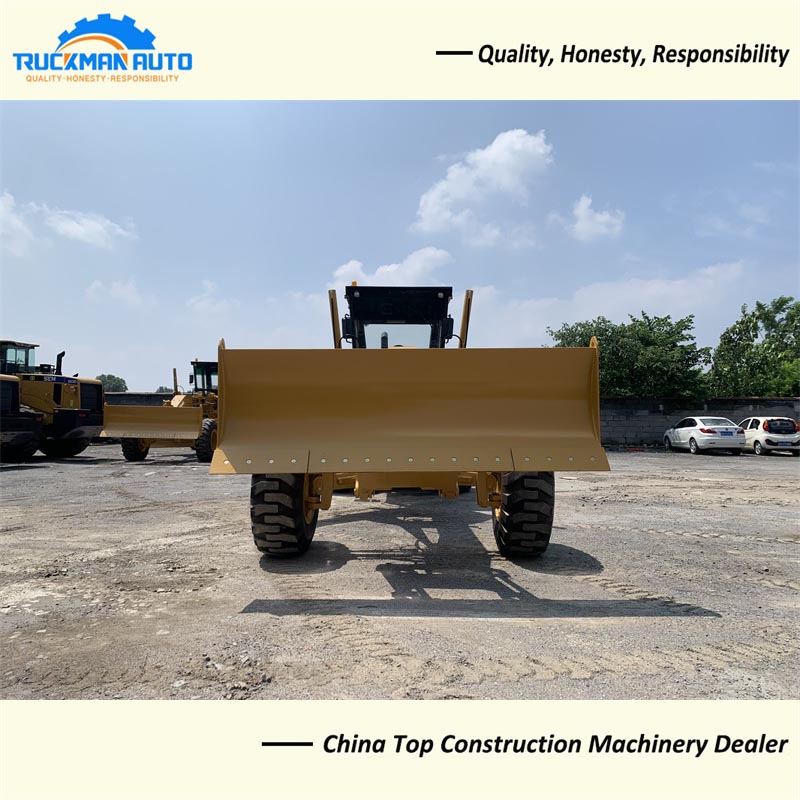

SEM 919 190HP Motor Grader Blade

The SEM 919 motor grader has prepared 3 specifications of wear-resistant blades for you. After the blade arc is optimized, the material can flow smoothly with less driving force, reducing the overall fuel consumption and blade wear. The two slide rails on the back of the blade are heat treated to increase durability and reliability. There are multiple holes on the bucket stipulation seat that can be adjusted, which allows the blade to extend further and be more efficient under working conditions such as scraping ditches on high slopes.
