What Are The Types Of Dozer Blade For Bulldozers ?

A bulldozer is an earthwork machine capable of excavating, transporting and discharging rock and soil, mainly used for leveling earthwork. The dozer blade is the most important working device on the excavator, and there are many types of dozer blade. The bulldozer shovels used are different due to the different operating environments and uses. How to choose the dozer blade according to the working conditions? You can refer to this article to choose.

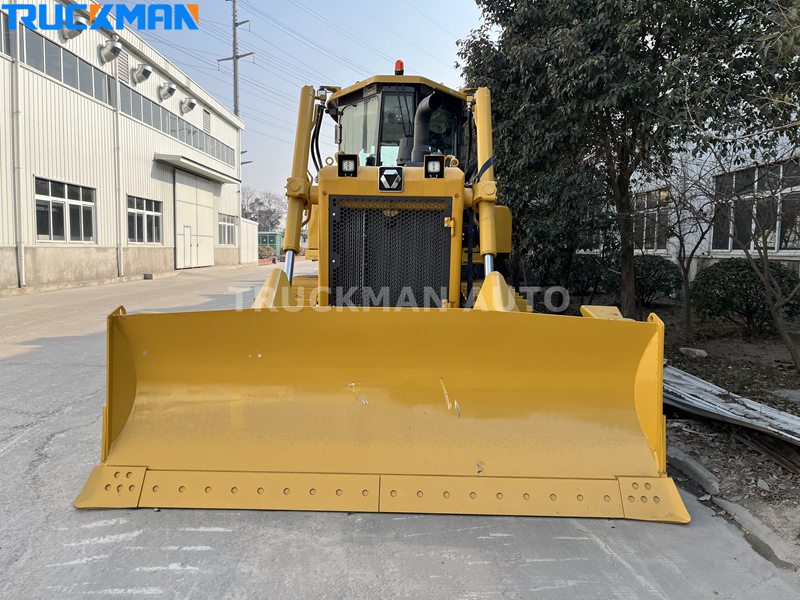

1. Straight Tilt Blade (S Blade)



The common dozer blade we see has a small arc and side plates, this is called a straight tilt blade. This type of blade is able to adjust the up and down and tilt angle, which provides good flexibility, greater cut-in and leveling ability. It is suitable for gravel, hard soil and other hard materials.

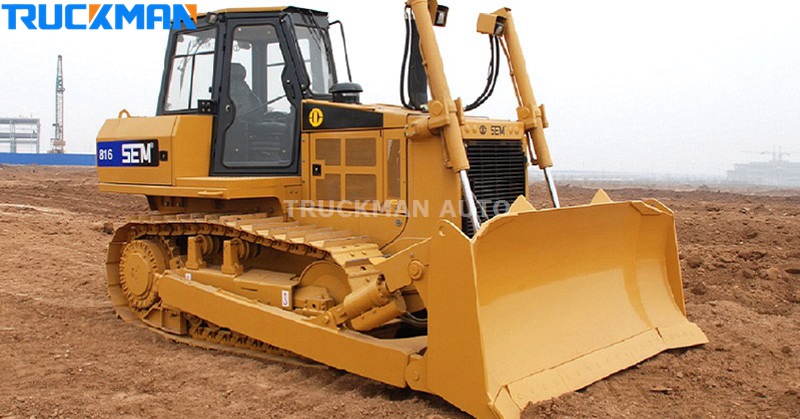

2. U Shape Blade



The U-shaped blade has a relatively large curvature and side plates, which makes it easy to hold material and more productive. It is suitable for loose and low-density materials, and can be used for light-duty large earthmoving volume and long-distance bulldozing operations.

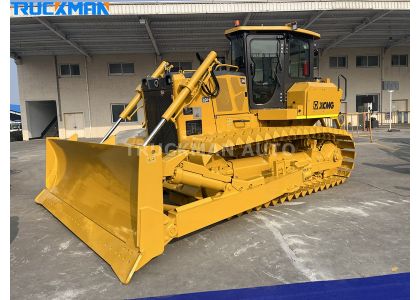

3. Half U-Shape Blade



This type of blade has a larger curvature and side plates than the straight tilt shovel in terms of profile, but is smaller than the U-shape blade. This type of bucket is called half U-shape blade, which combines the cutting and leveling ability of straight shovel and the large earthwork ability of U-shape blade, and is suitable for the operation requirements of various working conditions.

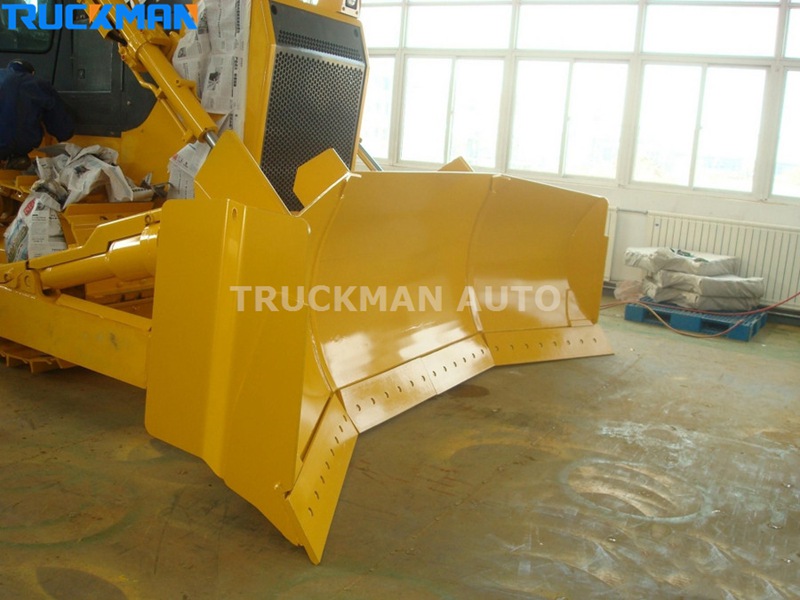

4. A Blade



A blade has a 0-25 degree two position forward and backward direction adjustment with good angle cutting ability, suitable for slope repair and final leveling operations.
